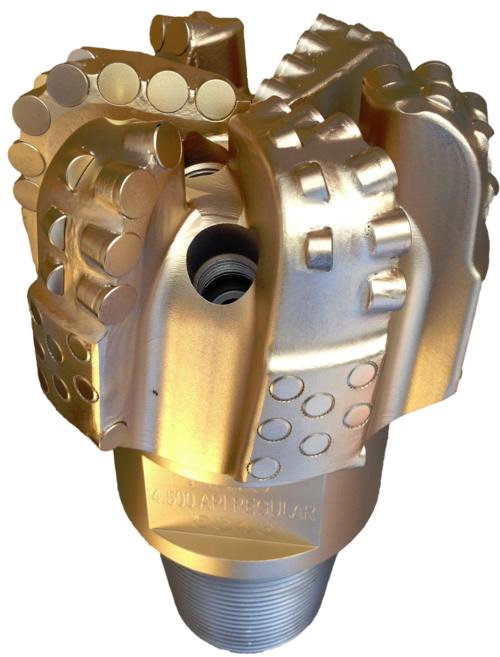

PDC drill bits, or Polycrystalline Diamond Compact drill bits, are widely used in various drilling industries, including oil and gas, mining, and geothermal operations. Their superior performance, long life span, and high efficiency make them a preferred choice for both vertical and directional drilling. However, selecting the right PDC drill bit for a specific application is crucial to achieve optimal performance and cost efficiency. Since each drilling operation is unique, several technical and geological factors must be considered before choosing the appropriate bit.

Evaluating the Formation Type

The first and most important factor in selecting a PDC drill bit is understanding the type of formation to be drilled. PDC bits perform exceptionally well in soft to medium-hard formations such as sandstone, shale, limestone, and claystone. In extremely hard or abrasive formations, standard PDC bits might wear out quickly or perform poorly. To overcome this, manufacturers offer bits with different cutter grades, cutter shapes, and body designs tailored to various rock hardness levels. Understanding the abrasiveness, compressive strength, and plasticity of the formation helps in determining the right bit design for the task.

Matching Bit Design with Application Requirements

The design of the PDC bit must align with the specific application and drilling objective. Factors such as the number of blades, cutter layout, nozzle placement, and hydraulic flow design all play a role in the bit’s performance. For vertical drilling, a bit that provides aggressive cutting and stability is ideal. In directional drilling, however, a bit that allows smoother steerability and better control over the trajectory is more suitable. Therefore, choosing a bit designed for your operation’s angle, depth, and directional plan ensures improved drilling efficiency and reduced operational issues.

Considering Cutter Technology and Material

The performance of a PDC drill bit heavily depends on the quality and technology of its cutters. PDC cutters come in various grades and geometries, each offering different levels of wear resistance, impact resistance, and thermal stability. In abrasive formations, enhanced cutters with diamond-impregnated material may offer better resistance to wear. Some advanced bits come with thermally stable PDC cutters that can withstand high bottom hole temperatures. It is essential to understand the specific conditions of your drilling site and choose a bit that uses cutter materials and shapes optimized for those challenges.

Hydraulic Efficiency and Cleaning Capability

Effective removal of cuttings from the bit face is essential for maintaining drilling speed and preventing damage to the bit. The hydraulic design of a PDC drill bits ensures the proper flow of drilling fluid to clean the cutting surface and cool the cutters. Bits with poor hydraulic performance may experience regrinding of cuttings, reduced rate of penetration, and faster cutter wear. Depending on the mud system being used and the type of formation, select a bit that provides sufficient hydraulic flow and optimal nozzle arrangement for efficient cleaning.

Checking Bit Body Material and Construction

PDC drill bits are commonly available in two types of body constructions: matrix body and steel body. Matrix body bits are made using a tungsten carbide blend and offer high wear resistance, making them suitable for abrasive formations. Steel body bits are more ductile, allowing for aggressive designs and better impact resistance. Choosing between a matrix or steel body depends on the specific challenges of your application. Steel body bits are generally easier to repair and are favored for applications requiring faster drilling speeds. Matrix body bits are ideal for harsh conditions where durability is more critical than speed.

Analyzing Drilling Parameters and Rig Capabilities

Drilling operations involve various mechanical and operational parameters such as weight on bit, rotary speed, torque, and vibration levels. A PDC bit must be compatible with these parameters to perform effectively. If your rig provides high rotational speed but lower weight on bit, the bit design should optimize cutting action under those specific conditions. Understanding the capabilities and limitations of your drilling rig ensures that the bit you select can be operated within the recommended range, minimizing the risk of premature failure.

Incorporating Field Data and Case Histories

Past performance data and case studies from similar formations can be extremely helpful in guiding your bit selection. Review reports from offset wells, drilling logs, and performance metrics from previous projects to determine which bit designs worked best under comparable conditions. Manufacturers often provide case histories and performance summaries that detail how specific bits performed in similar applications. Using this information helps to make data-driven decisions, increasing the likelihood of selecting the most efficient bit for your task.

Considering Customization and Manufacturer Support

In many complex drilling environments, a standard PDC bit may not be sufficient. Choosing a manufacturer that offers customization allows you to tailor bit design to your specific geological and operational requirements. Custom bits can be optimized for everything from cutter arrangement to blade configuration, giving you better performance in unique conditions. In addition, technical support from the manufacturer ensures proper bit selection, usage guidelines, and troubleshooting assistance throughout the operation.

Evaluating Cost Versus Value

While initial bit price is an important factor, it should not be the sole criterion for selection. A cheaper bit may lead to higher operational costs if it requires frequent replacement or performs poorly. Evaluate the total cost of drilling, including the number of trips, rate of penetration, and bit longevity. A high-quality PDC bit that lasts longer and drills faster can significantly reduce the overall cost per foot. Therefore, it is important to assess long-term value rather than focusing only on upfront expenses.

Conclusion

Choosing the right PDC drill bit for your specific application is a critical step that directly impacts drilling efficiency, operational safety, and cost control. By understanding the formation characteristics, matching the bit design to your objectives, considering advanced cutter technologies, and analyzing operational parameters, you can make a well-informed decision. Involving manufacturers for technical support and utilizing field data further improves your chances of selecting the most effective bit. A strategic approach to bit selection ensures smoother operations, fewer disruptions, and better overall project outcomes.
